OPT Hand Crimping Tool (LY-06WF LY-16WF LY-02H LY-10)

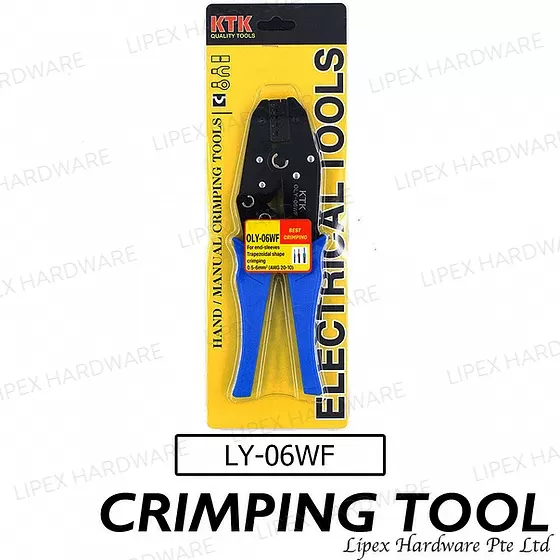

For end sleeves
Trapezoidal shape crimping

Model No.: LY-06WF
Crimping Range:
DIN: 0.5-6mm2
AWG: 20-10
Tool weight: 0.6kg
Tool length: 230mm

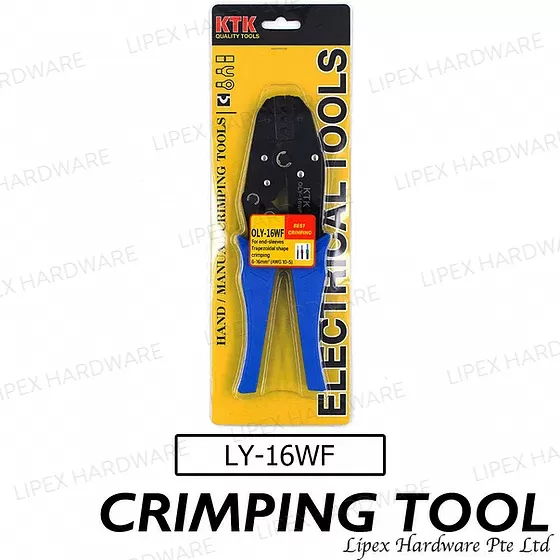

For end sleeves
Trapezoidal shape crimping

Model No.: LY-16WF
Crimping Range:
DIN: 6-16mm2
AWG 10-5
Tool weight: 0.6kg
Tool length: 230mm

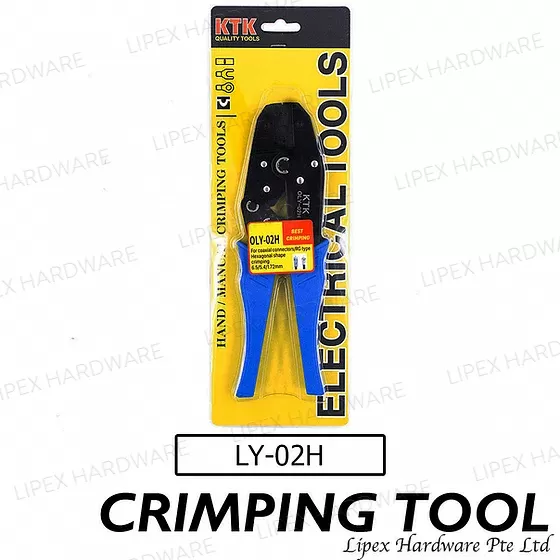

For coaxial connectors/ RG type
HEXAGON shape crimping

Model No.: LY-02H
Crimping Range:
AF size (mm): 6.5/ 5.4/ 1.72
Tool weight: 0.6kg
Tool length: 230mm

For non-insulated cable lugs
Mandrel shape crimping

Model No.: LY-10
Crimping Range:
DIN: 1.5-10mm2
AWG: 16-8
Tool weight: 0.6kg
Tool length: 230mm

This item is only available for indent. Kindly email us at sales@lipex.com.sg for a quote.
